| Series : | stainless steel tank |
| Name : | alcohol precipitation tank |
| Model : | HCAT |
| Click : | 5894 |
|

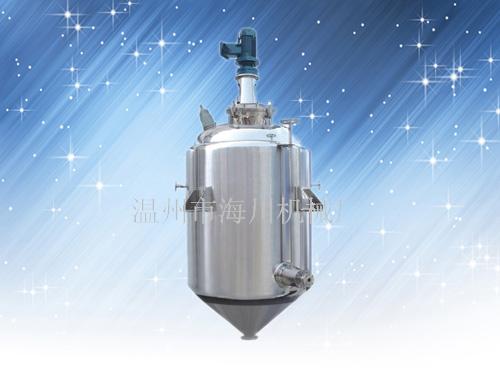

The device serves for alcohol deposition to traditional Chinese medicine, oral liquid, food, health product and chemical product etc. The deposition tank of alcohol is the special equipment newly developed in the alcohol deposition procedure.
It is mainly used to the operation of freezing or alcohol deposition under normal temperature to the solution after the concentration of water frying liquid of traditional Chinese medicine, and can also be used to the operation of water deposition to the concentration solution after alcohol extraction of traditional Chinese medicine. The equipment is composed of oval sealing head with jacket, cylinder barrel body with cone bottom, built-in three-impeller type mixer and liquid tube that is screwed out through special fine adjustment. For the water frying concentration of traditional Chinese medicine, first add alcohol to dispense into liquid with certain alcohol content, and carry out sedimentation after freezing under normal temperature and low temperature and separate the liquid and solid, to improve the purity and clarity of extraction liquid of traditional Chinese medicine. The equipment is completely made of aisi304 stainless steel, equipped with high pressure water automatic spraying and cleaning system. In the jacket, the low temperature cooling water can pass. The transmission part adopts mechanical sealing, and the anti-explosion motor guarantees that the product io n process safety is in accordance with GMP medicine standard. The surface of equipment adopts mirror polishing or semi-luster polishing. Alcohol precipitation tanks could even be designed in accordance with the requirements of customers |
